FAAC -OIL-HYDRAULIC GEARMOTOR FOR DOUBLE FOLDING GATES IN TWO LEAVES, FOR INTENSIVE USE

- EQUIPPED WITH HYDRAULIC LOCK ON OPENING/CLOSING
- IDEAL FOR FOLDING DOORS WITH MAX. SINGLE PANEL WIDTH 1.5 M
- CONTROL UNIT NOT INTEGRATED
- IDEAL FOR FOLDING DOORS WITH 2-LEAF COLLECTION
- OPENING AND CLOSING THANKS TO A TELESCOPIC ARM
- IN CASE OF A POWER FAILURE THE RELEASE ON THE ACTUATOR ALLOWS MANUAL OPENING AND CLOSING
- ANTI-CRUSHING GUARANTEED BY A PAIR OF BY-PASS VALVES WITH INVIOLABILITY SYSTEM

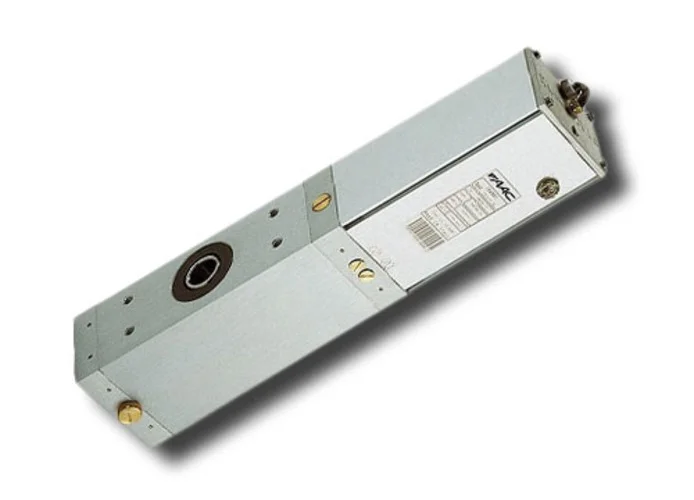

ACTUATOR 560 CBAC
104561
230V AC

TECHNICAL DETAILS:
- POWER SUPPLY: 220-240V~ 50/60 HZ
- ELECTRIC MOTOR: ASYNCHRONOUS SINGLE-PHASE
- MAX POWER: 220 W
- MAX THRUST: -
- MAX TORQUE: 320 NM (*)
- MAX ANGULAR SPEED: 12,4 °/S (*)
- MOTOR-PUMP UNIT: 1 LPM (*)
- OPERATING TEMPERATURE: -20 °C ÷ +55 °C
- THERMOPROTECTION: 120°C
- DEGREE OF PROTECTION: IP55
- OIL TYPE: FAAC HP OIL
- WEIGHT: 12 KG
- SIZES (LXPXH): 480 X 85 X 110 MM
- ELECTRONIC EQUIPMENT: NOT INCLUDED
- MAX LEAF WIDTH: 1,50 M (SINGLE PANEL)
- USE FREQUENCY: 80 CYCLES/HOUR

Complementary accessories (not included):
- electronic board E045S 790077 (EX 790005)
- electronic board E145S 790076 (EX 790006)
- container mod. E for electronic boards 720119
- articulated telescopic arm with accessories for installation 738700
- standard telescopic arm with accessories for installation 738703
- XF 433 MHz 787831 card receiver (EX 319006)
- two-channel transmitter XT2 433 SLH LR, 787007
